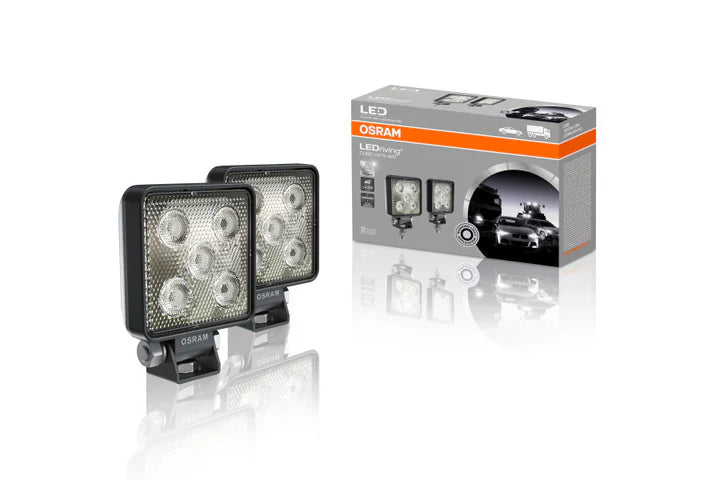

LEDriving Cube VX70-WD

Technical Specifications LEDWL103-WD

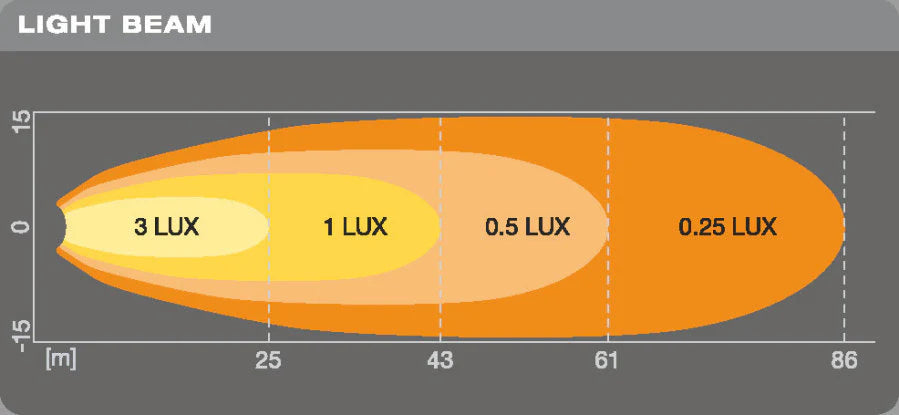

Light distance 86m@0.25lux/43m@1lux
Hot Lumen: 550lm
Color temperature: 6000K
Rated input power: 8W
Input voltage: 12/24V
IP Protection: IP67
EMC/EMI: ECE R10
Polarity protection
Cable length: 35cm
Weight: 241g

Features

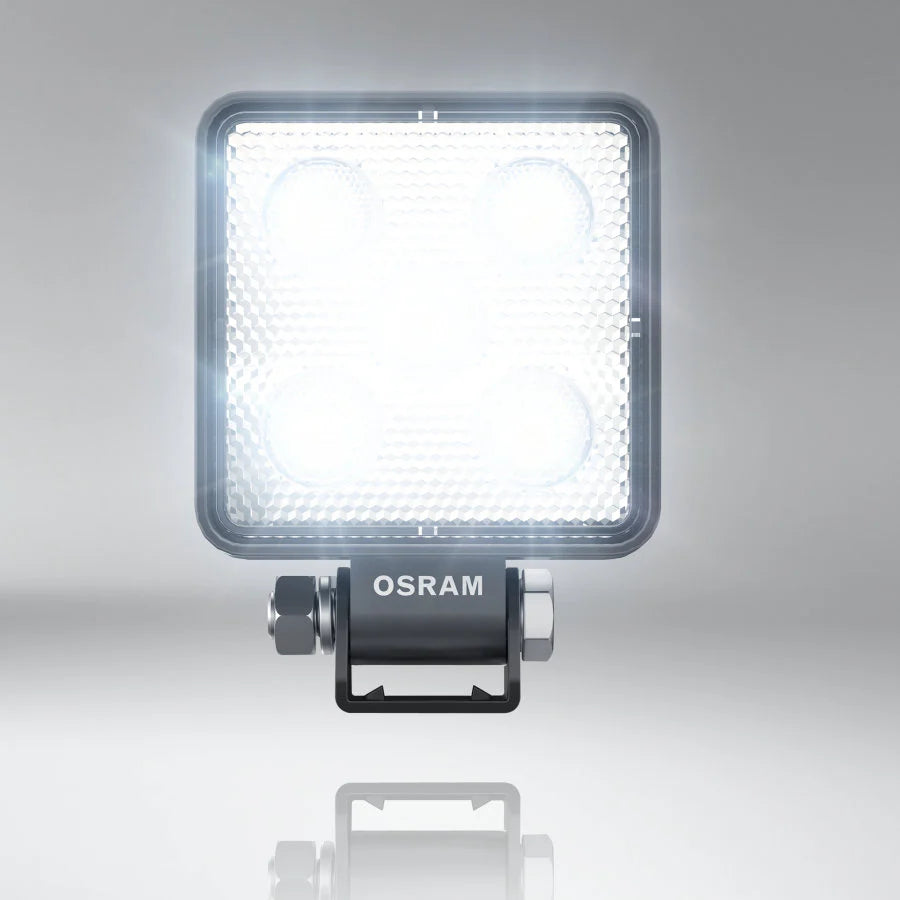

Compact rectangular LED Spot Lights

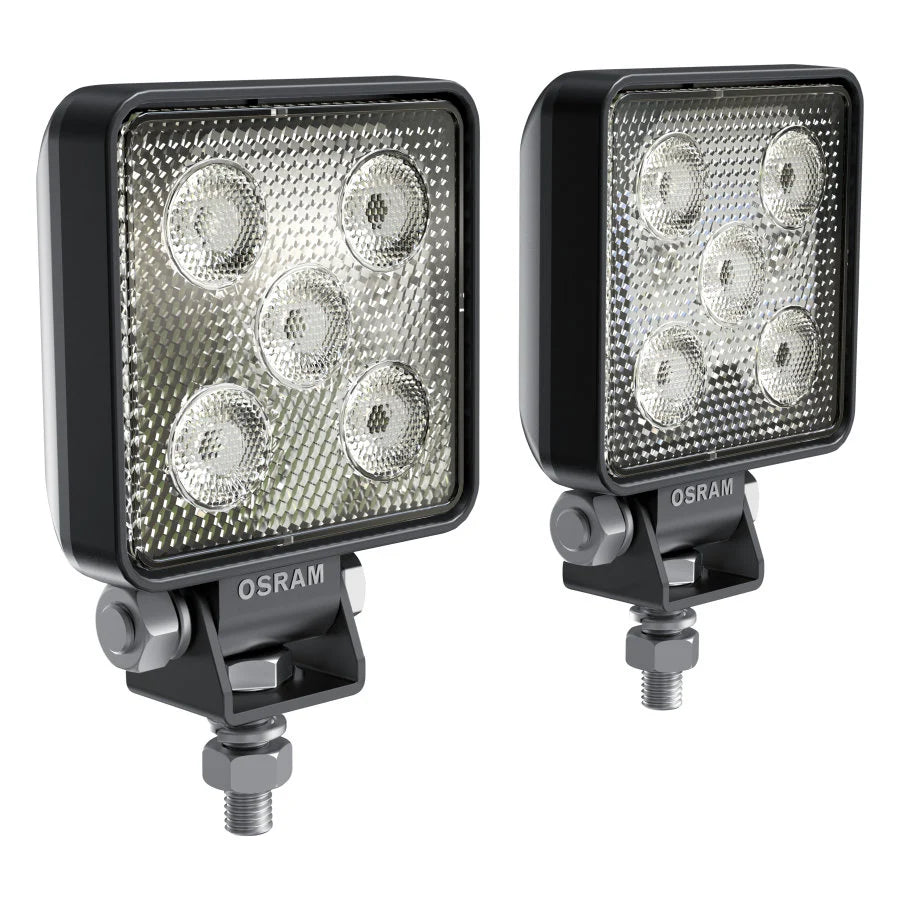

Duo pack (2 pieces in 1 box)
Light range: up to 86m
Wide beam pattern
Robust & Resistant: Shatter proof polycarbonate
lens to endure heavy duty application
Over and under voltage protection
Integrated driver and thermal management
system
LEDs: OSRAM DURIS S5x5 pcs
2-year guarantee

Fields of application
Cars
Trucks
Commercial/Construction vehicles
4x4
ATV
Agriculture
Caravans

The OSRAM LEDriving Cube VX70-WD impresses with its
powerful performance and a long service life with up to 5000 hours
The integrated driver and the thermal management system
regulate the temperature of the LED Spotlight
The OSRAM LEDriving Cube VX70-WD can be attached to cars, trucks,
agricultural machinery, farm machinery, commercial vehicles,
construction vehicles, off-road vehicles and quads

The OSRAM Wire Harness AX 2LS wire harness is recommended for use with this product
